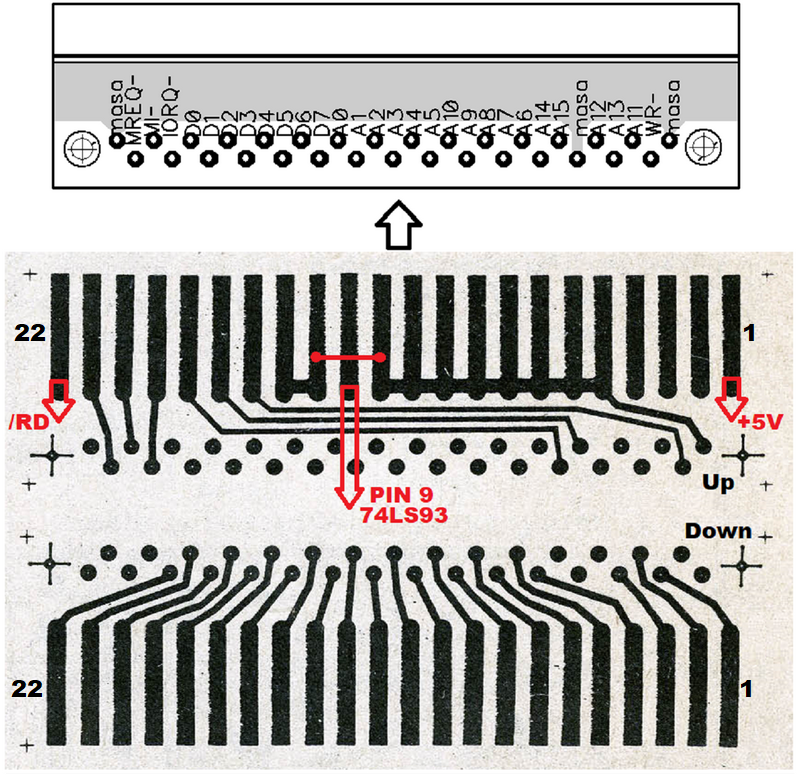

There are several devices connected to Galaksija with the I / O connector. Was added three the signal, which was absent on the PCB of the Galaksija lately: /RD, Clock, +5V. Scheme I / O connector is presented in figure. The following is a pinout of the connector.

, / . , : /RD, Clock, +5V. .



CHIP TESTER /

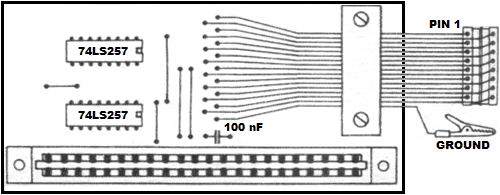

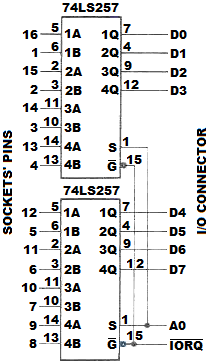

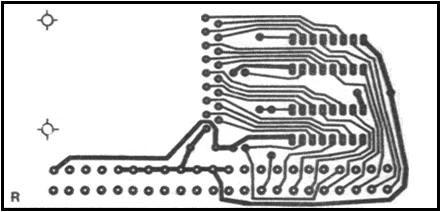

Scheme and PCB diagram of Chip Tester is presented in figure.

.

_



PRINTER INTERFACE /

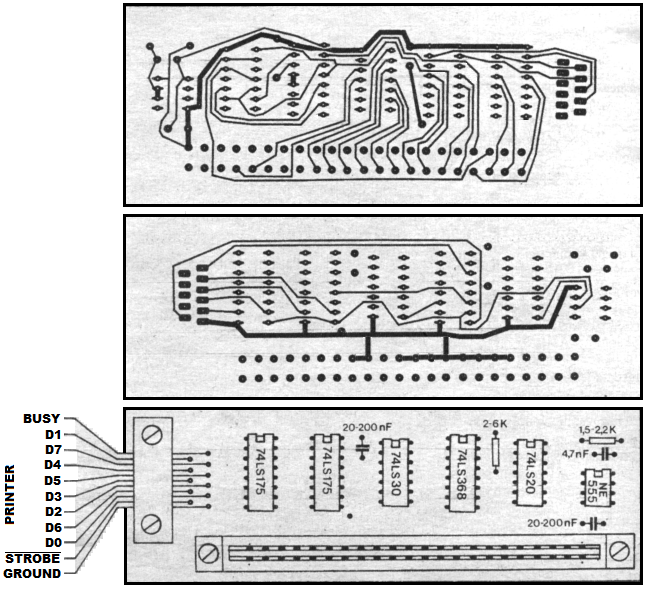

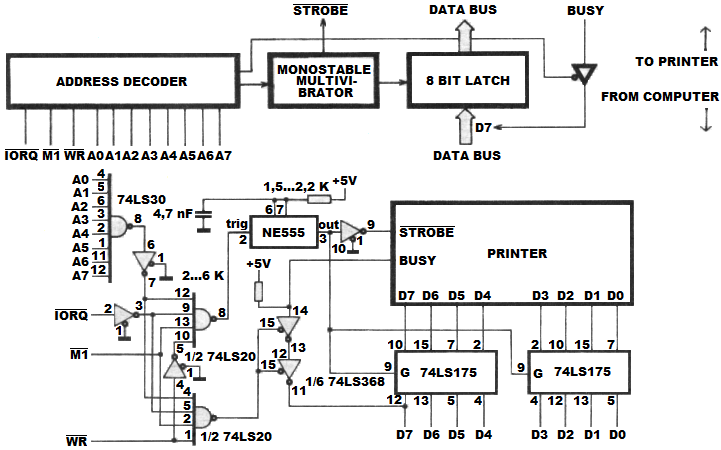

Scheme and PCB diagram of Printer Interface is presented in figure.

.



PROM PROGRAMMER /

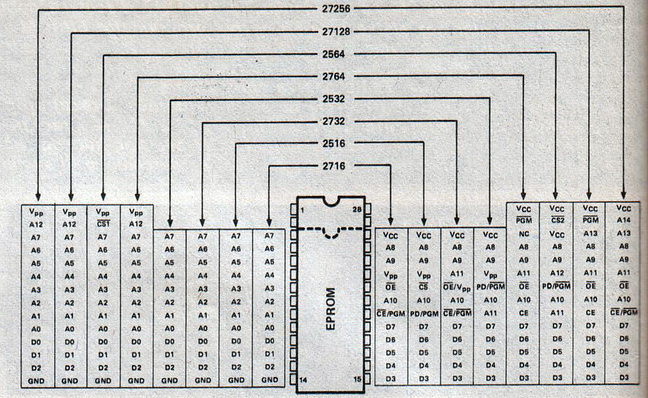

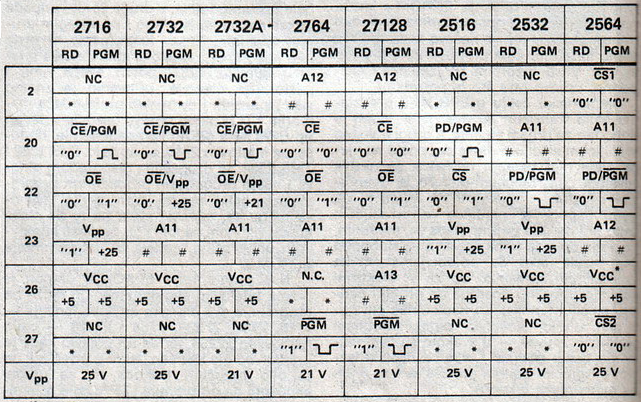

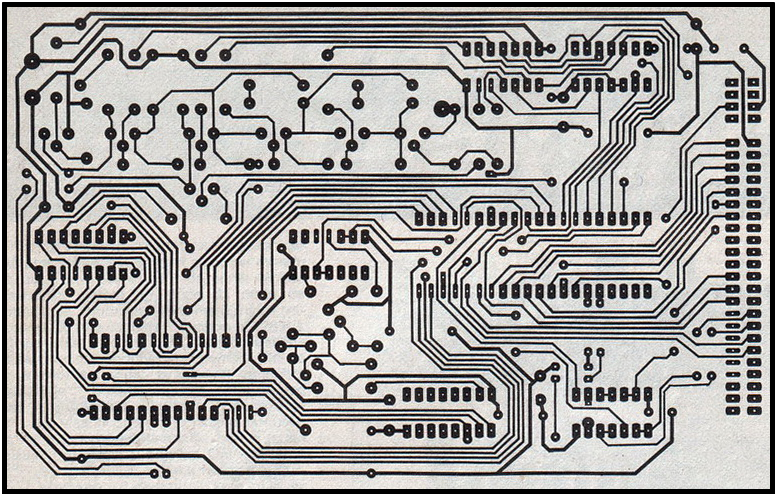

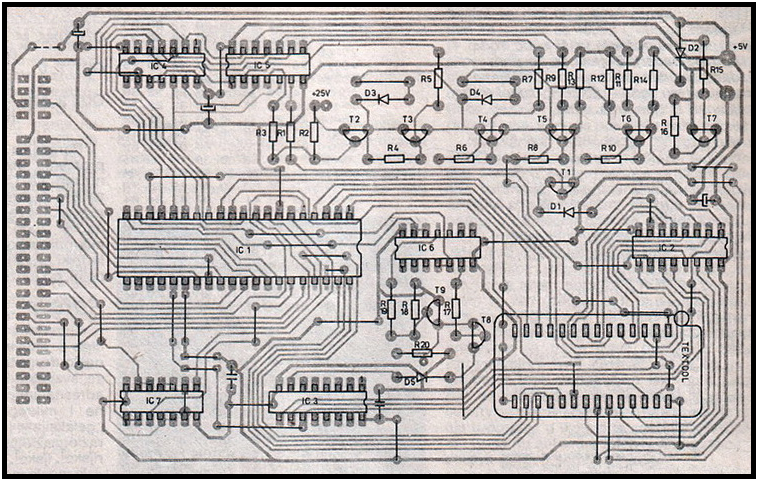

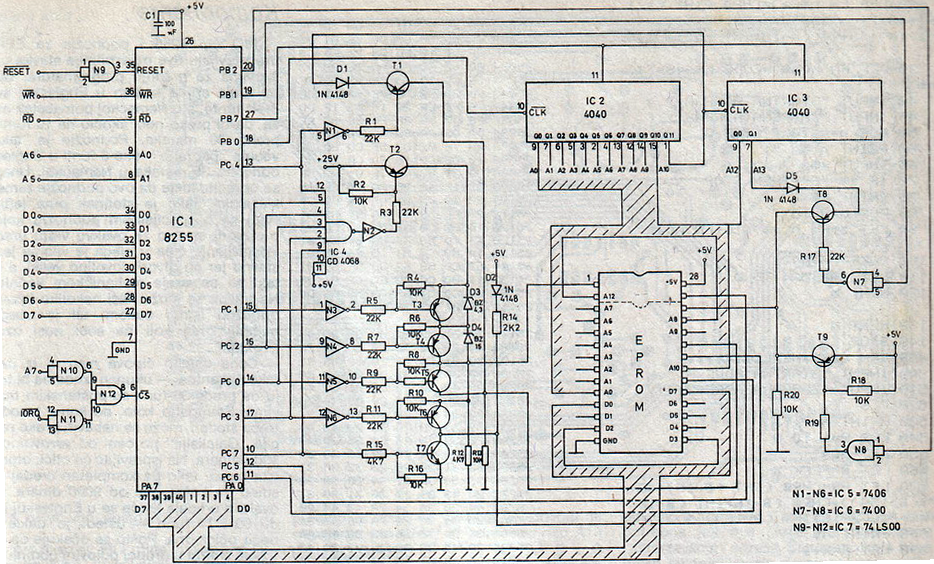

Scheme and PCB diagram of PROM Prorammer is presented in figure.

.
